Cyanide Analyser for Industrial Water Treatment

Cyanide Analyser for Industrial Water Treatment

Advanced S80-T80 Cyanide Analyser Monitoring System from Electro-Chemical Devices supports efficient treatment will ensure cyanide levels in wastewater effluent are compliant with local, state and federal regulations.

Cyanide (CN) in its multiple forms is toxic and is widely used by a variety of industries. For example, CN is used in the manufacture of nylon and plastics. Other uses include the case hardening of steel, metal plating, the separation of gold and silver from ores and the scrubbing of stack gases from blast furnaces.

According to the U.S. Environmental Protection Agency (EPA), cyanide is toxic and the lethal oral doses of cyanide compounds generally range from 50 to 200 mg CN (0.7 to 2.9 mg/Kg). Short-term exposure to cyanide above the maximum contaminant level (MCL) can cause rapid breathing, tremors and other neurological effects.

Long-term exposure to Cyanide (e.g., lifetime) at levels above the MCL can cause weight loss, thyroid effects and nerve damage. At present, no adequate evidence exists that cyanide compounds have the potential to cause cancer from lifetime exposure in drinking water.

The U.S. EPA’s National Primary Drinking Water Regulations (NPDWR) are legally enforceable primary standards and treatment techniques that apply to public water systems. These regulations limit the level of CN (free CN) contaminants in drinking water to 0.2 mg/L, which is the maximum contaminant level goal (MCLG).

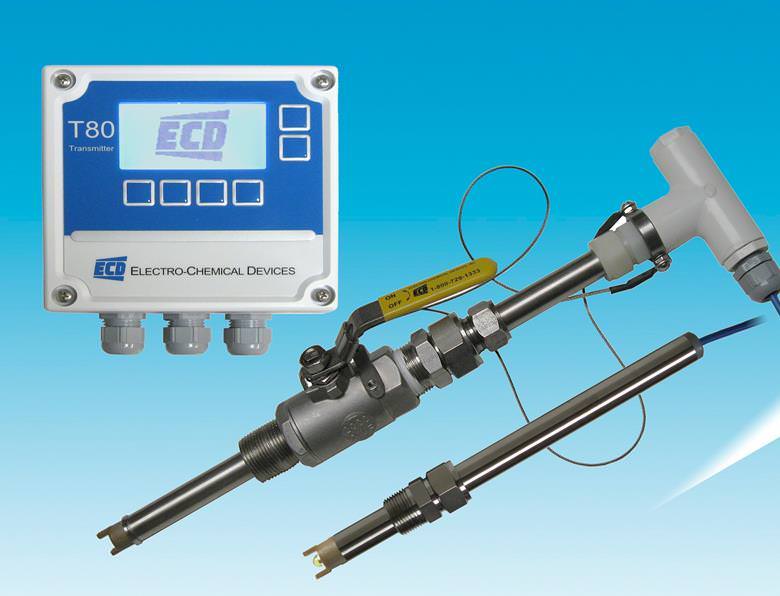

The ECD S80-T80 Cyanide Analyser Monitoring System features an S80 Pion Cyanide Sensor and a dual-channel T80 Transmitter. This ECD CN Analyser solution helps plants achieve a more cost-effective cyanide removal water treatment system, which ensures wastewater is treated to meet U.S. EPA regulatory requirements prior to effluent discharge.

The S80’s CN ion electrode is a combination electrode with a silver cyanide/silver sulfide (AgCN/AgS) solid-state pressed crystal sensing element and a double junction reference electrode. The CN ion selective electrode cartridge develops a millivolt potential proportional to the concentration of free CN ions in the measured solution. The typical output is 54mV to 60mV per decade of change in concentration.

The speed of sensor response varies from a few seconds in concentrated solutions up to a few minutes in the lower ppm ranges. The CN ion sensors are used with the Model T80 Transmitter with its dual channel mix and match capabilities. This analyser measures CN from 0.2 ppm to 260 ppm and auto-ranges the display between the ppb and ppm scales.
